VGA Solderless Quick Connector 16mm Thinner 3+9 DB15 3Row Serial Plug to 15-pin Port Terminal Adapter Breakout Board

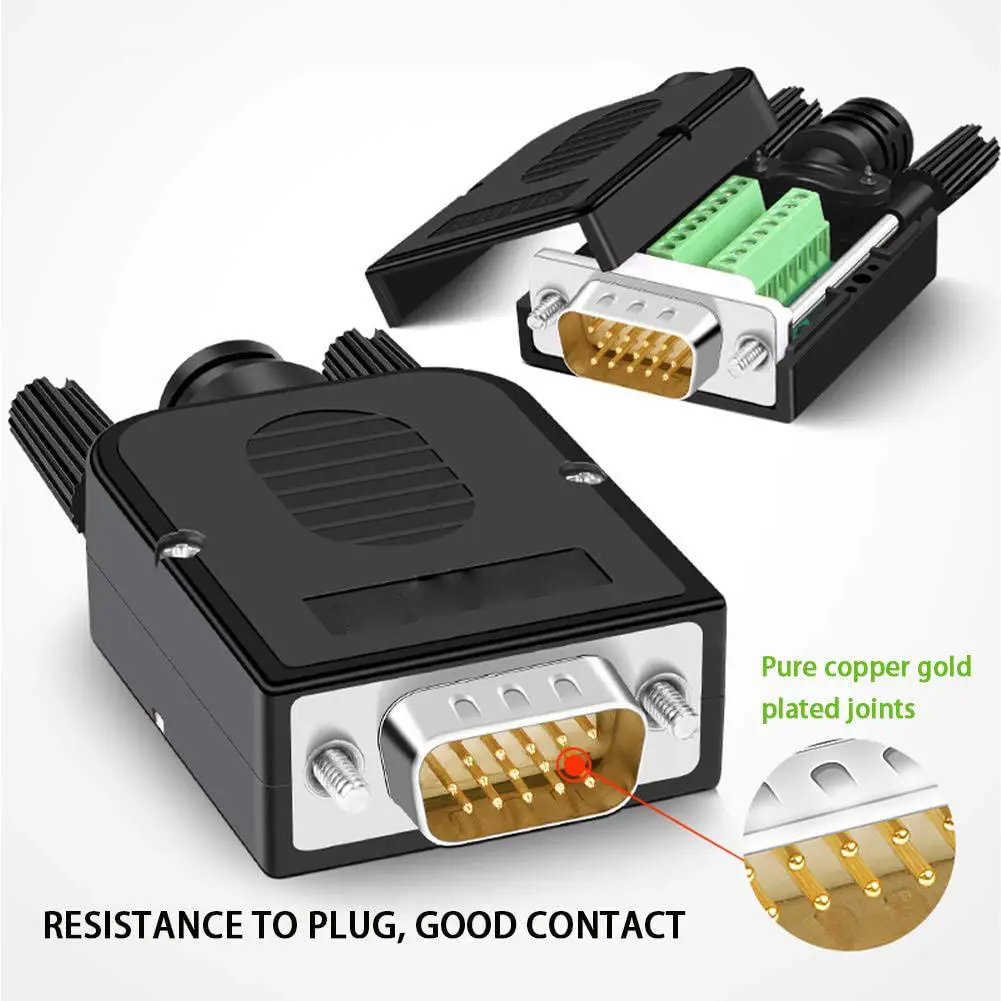

DURABLE: Pure copper gold plated joints, automatic wave solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.

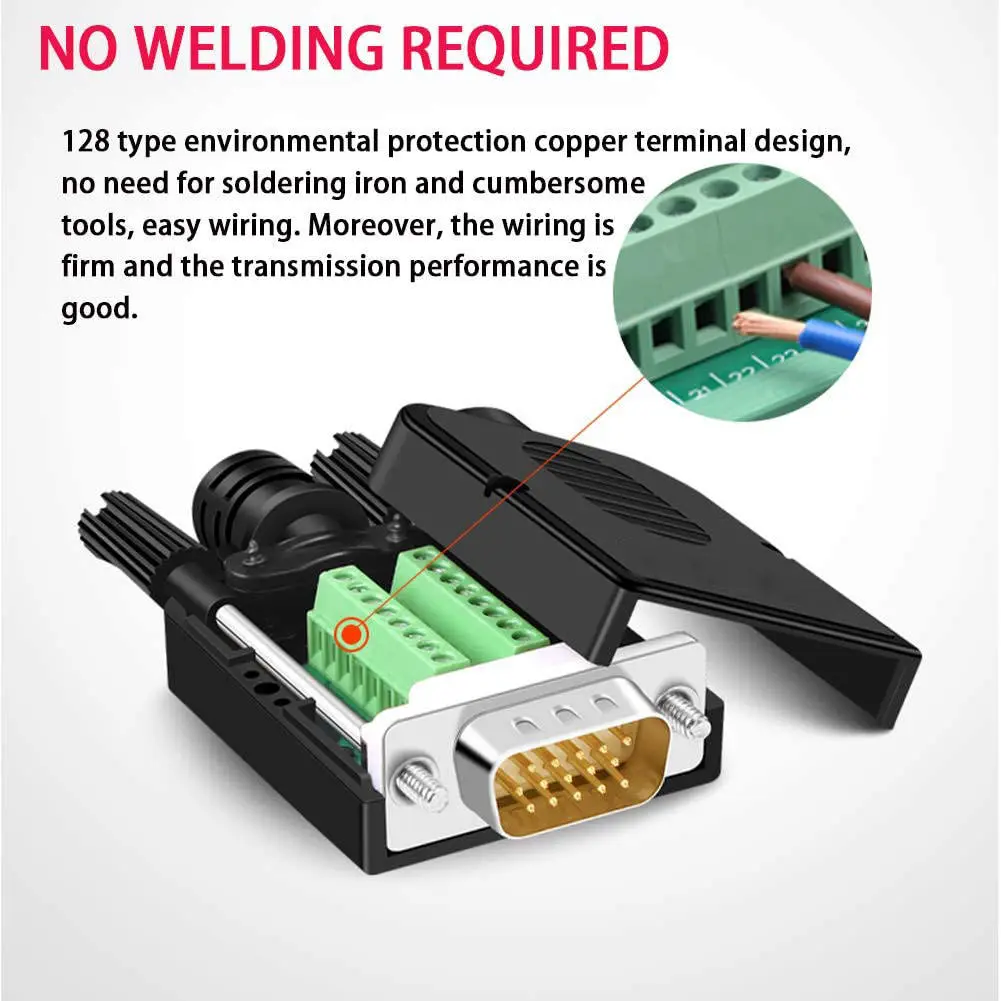

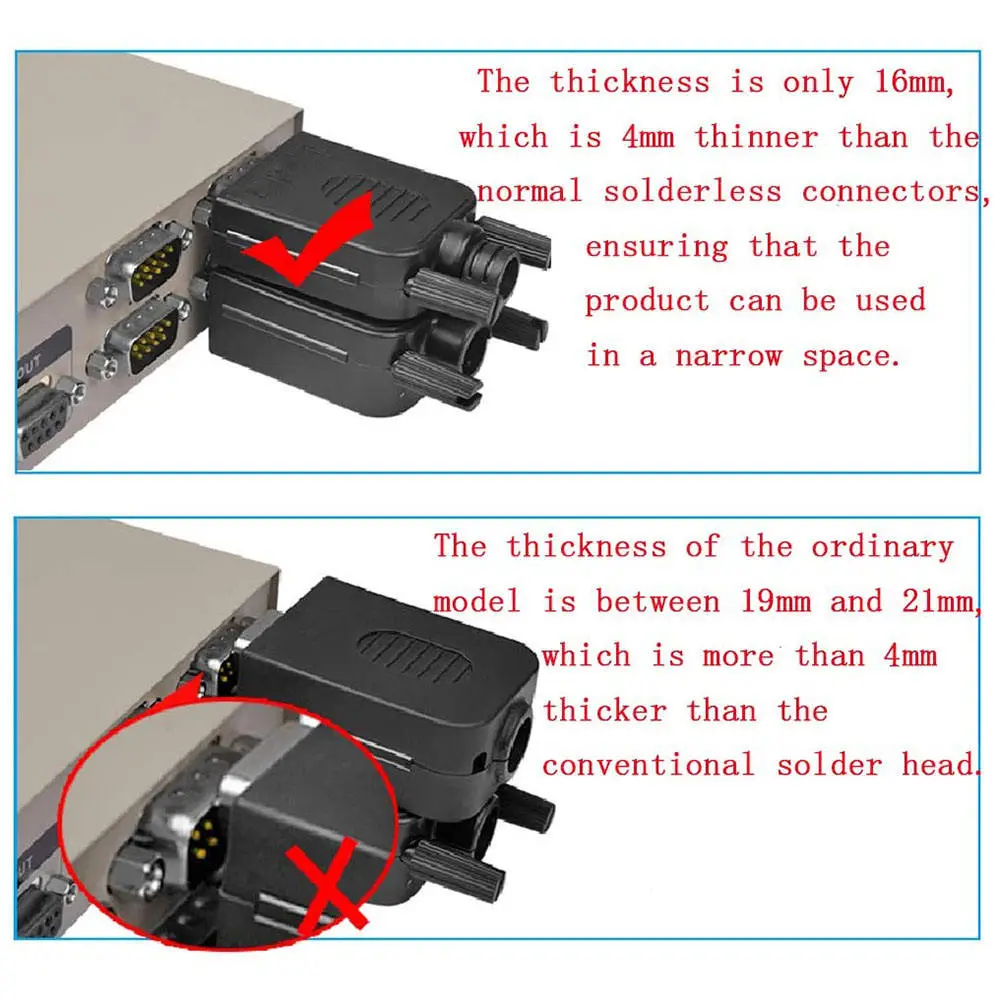

SOLDERLESS: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. Moreover, the wiring is firm and the transmission performance is good. THINNER 16mm: The thickness is only 16mm, which is 4mm thinner than the normal solderless connectors, ensuring that the product can be used in a narrow space. STRONG ANTI-PULL: Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.

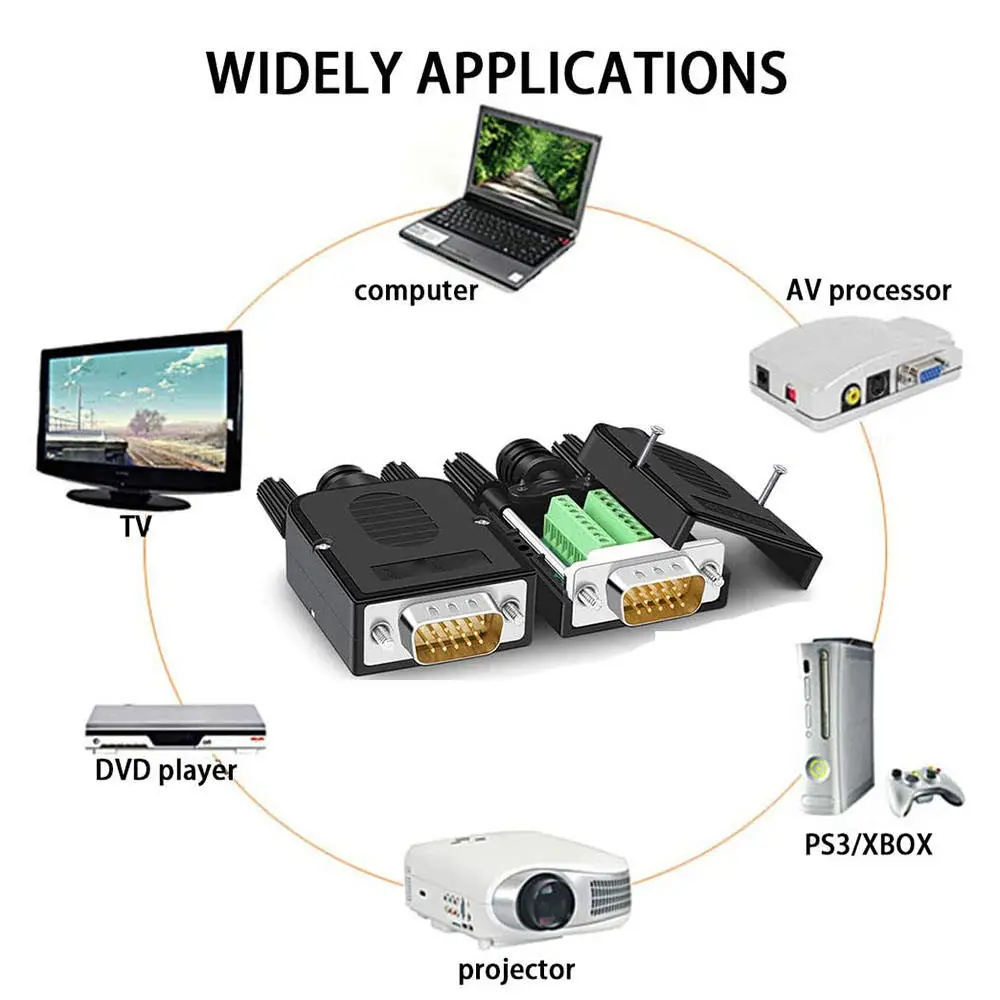

MULTIPLE FUNCTIONS: Suitable for VGA3+9/3+7/3+6/3+5/3+4/3+2 cables and various communication interfaces. All signal ports are clearly named and labeled on both sides of the board for quick wiring.

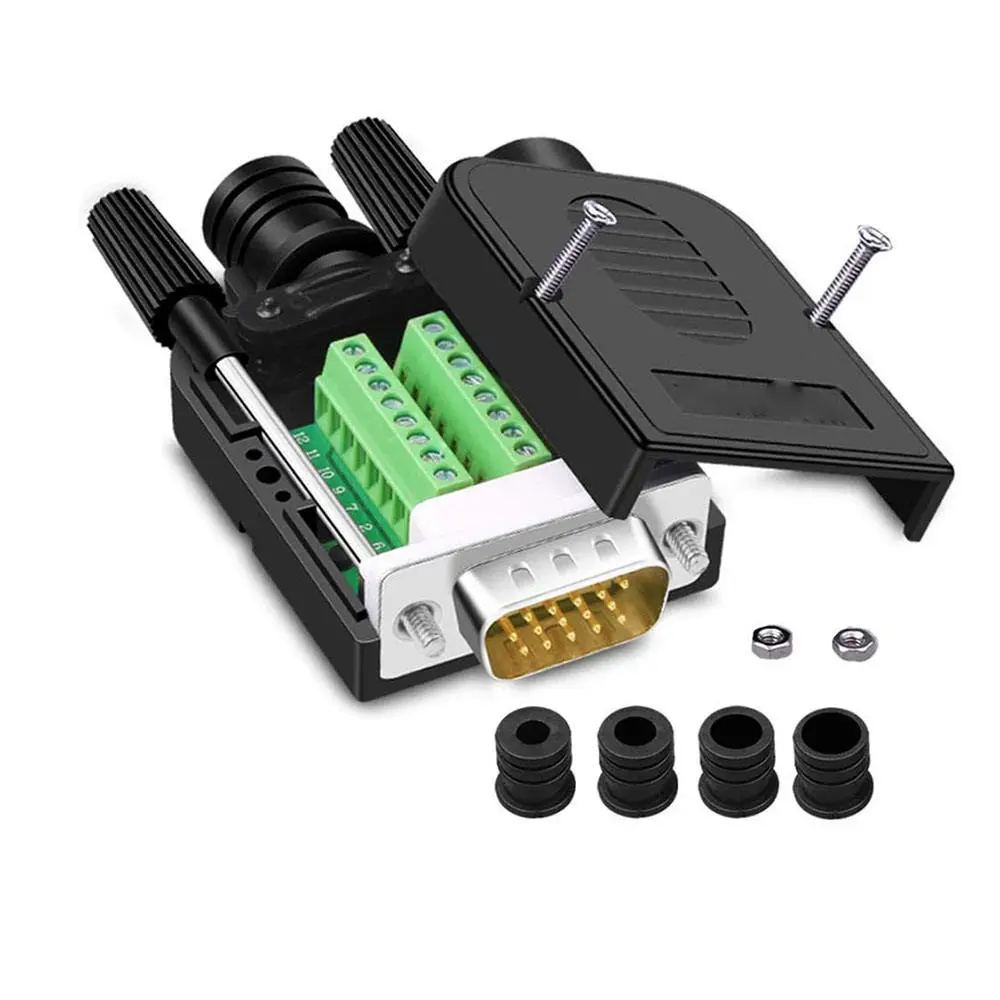

Technical Specifications: Name: 3+9 VGA Quick Connector Plug type: Male Accessories: housing, screw, card line buckle Connector material: Pure copper gold plated joints

Contact Material: Copper Housing material: environmentally friendly PP engineering materials

Shell type: Screw locking Cable Specification: 26-16 AWG Torque: 0.2Nm (1.7Lb-In.) Automatic Wave Solder: Good conductivity, no solder bridge, no Pseudo Soldering

Opening size (cable port): 10.5mm/0.41″

Size: 49 mm×35 mm×16 mm/ 1.93″×1.38″×0.63″
