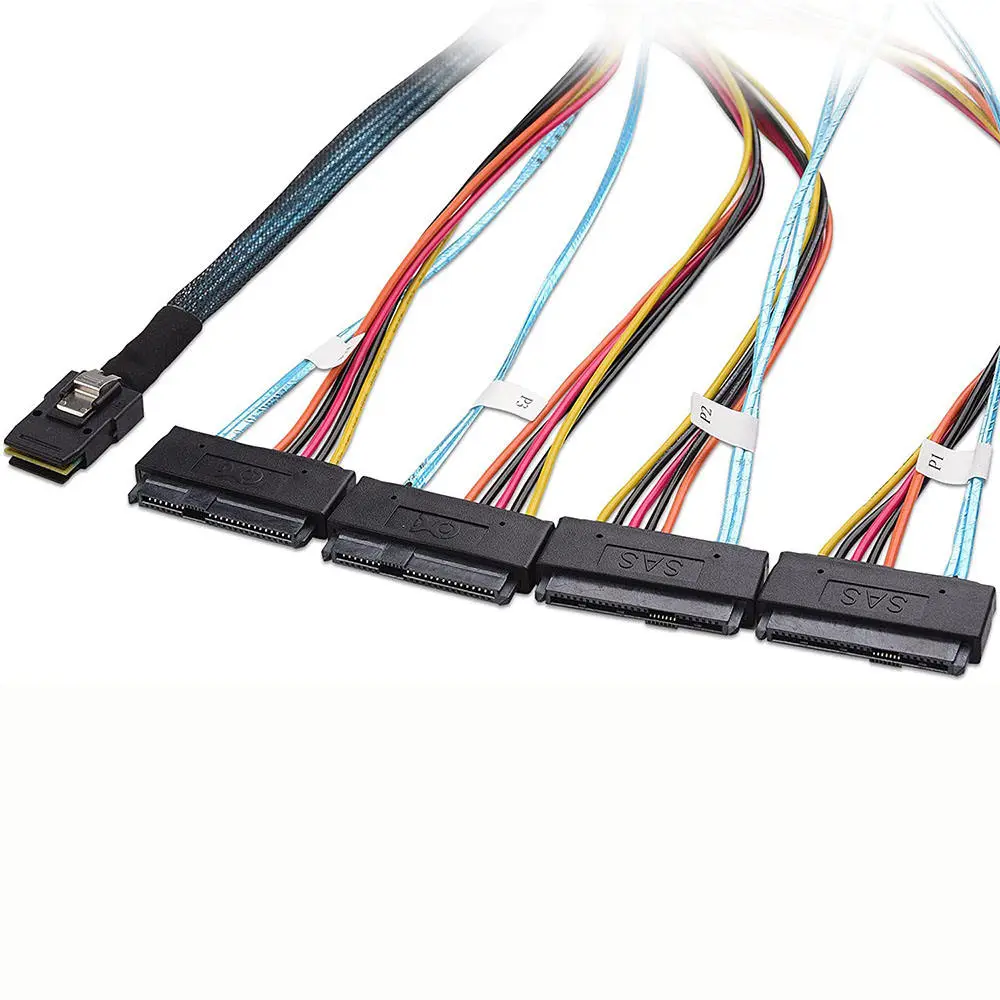

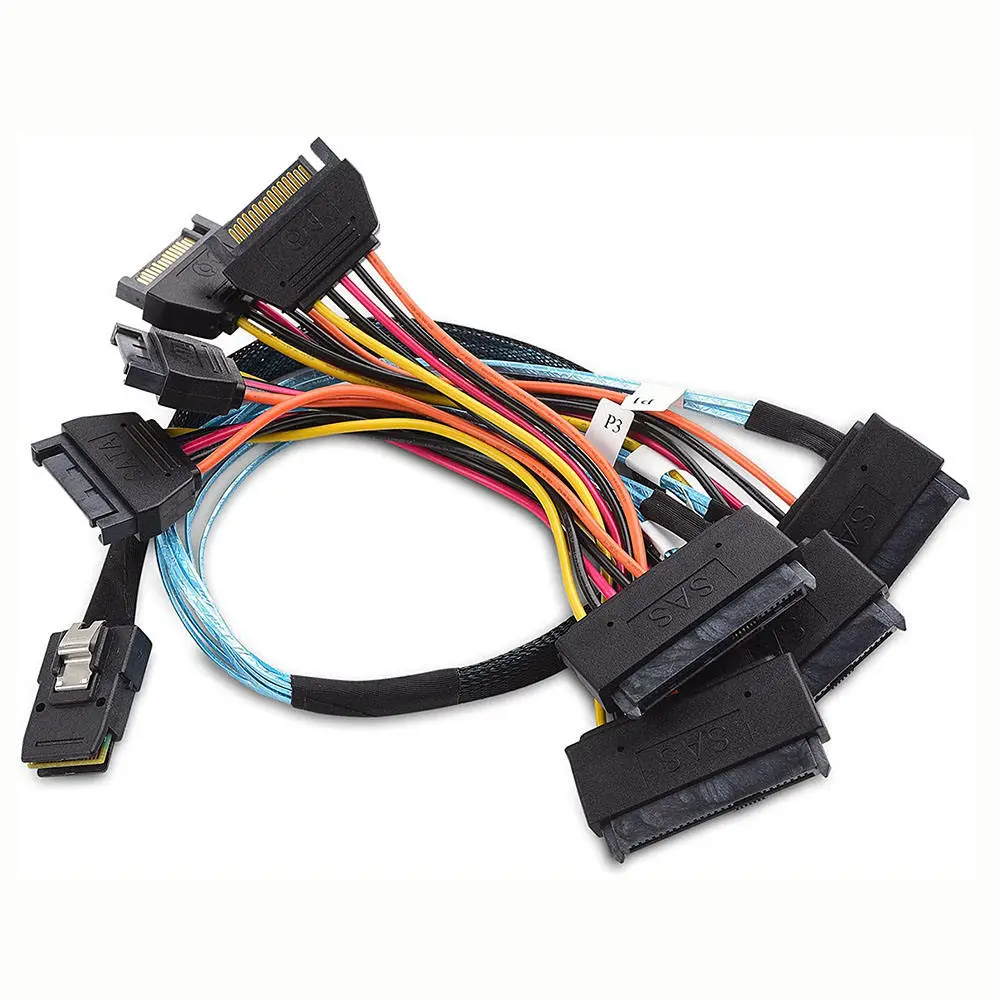

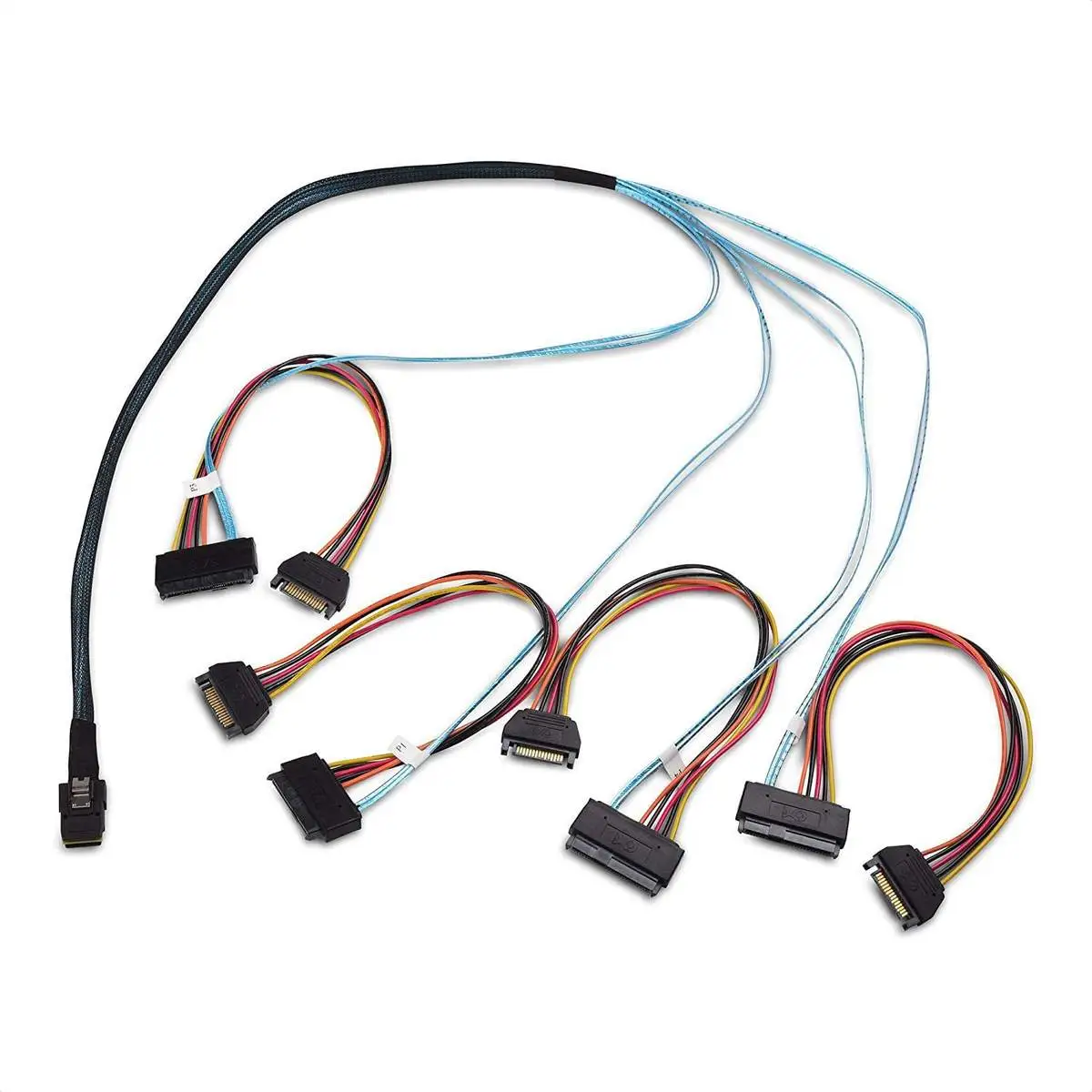

SFF-8087 to SFF-8482, 36 Pin Mini SAS Spliter to 29 Pin 4x SAS Forward Breakout Cable

SFF-8087 to SFF-8482, 36 Pin Mini SAS Spliter to 29 Pin 4x SAS Forward Breakout Cable

Description: INTERNAL MINI SAS DATA + POWER CABLE connects a SAS controller to 4 separate SAS HDD drives; Forward fanout cable has 1x latching SFF 8087 Mini SAS host connector and 4x discrete SAS target hard drive SFF 8482 connectors SCSI CONTROLLER TO SAS cable provides internal computer connectivity between a Serial Attached SCSI controller card host and direct attached storage hard drives; 36 pin SFF-8087 Host connector and 4x SAS 29 pin SFF-8482 data and power Target drive connectors DIY OR PRO INSTALLERS require a forward fan-out cable with an internal mSAS connector when expanding storage needs for Storage Area Network (SAN) or Direct Attached Storage (DAS) applications; Sturdy molded connectors provide a secure connection; Slim ribbon cables in a woven mesh sheath minimize airflow impact in a computer case; Integrated SATA power supply cables make it easy to see what is connected DIY OR PRO INSTALLERS require a forward fan-out cable with an internal mSAS connector when expanding storage needs for Storage Area Network (SAN) or Direct Attached Storage (DAS) applications; Sturdy molded connectors provide a secure connection; Slim ribbon cables in a woven mesh sheath minimize airflow impact in a computer case; Integrated SATA power supply cables make it easy to see what is connected MINI SAS CONTROLLER COMPATIBLE with popular HBA cards from Adaptec RAID 6405E Storage Controller, Adaptec U320 PCI Express X1 1-Channel SCSI Host Bus Adapter, HP Smart Array P410 8-Port SAS RAID Controller, HighPoint RocketRAID 2710 x8 RAID HBA, HighPoint RocketRAID 2720SGLx8 RAID HBA, LSI Logic RAID 8 PORT 6GB SAS/SATA PCie, LSI LOGIC SAS 9207-8i Storage Controller, and StarTech.com Mini SAS Hot Swap Backplane

Data & Power Combo The Internal Mini-SAS to 4 SAS Data & Power Forward Breakout cable is an essential component of a storage area network. This multi-lane forward cable connects 4x SAS HDD drives (data & power) to a single Mini SAS controller. Why buy a separate power cable to connect your PSU± New power supplies have SATA power connections. Eliminate the need for a Molex to SATA power adapter and save space in your computer case.

Storage Expansion Maximize the capacity of your RAID configuration with this robust but flexible cable that is built to withstand 24/7 use.

Important Notes Molex power connectors to a PSU require an adapter Data transfer speed is determined by the capabilities of your SAS controller and drives

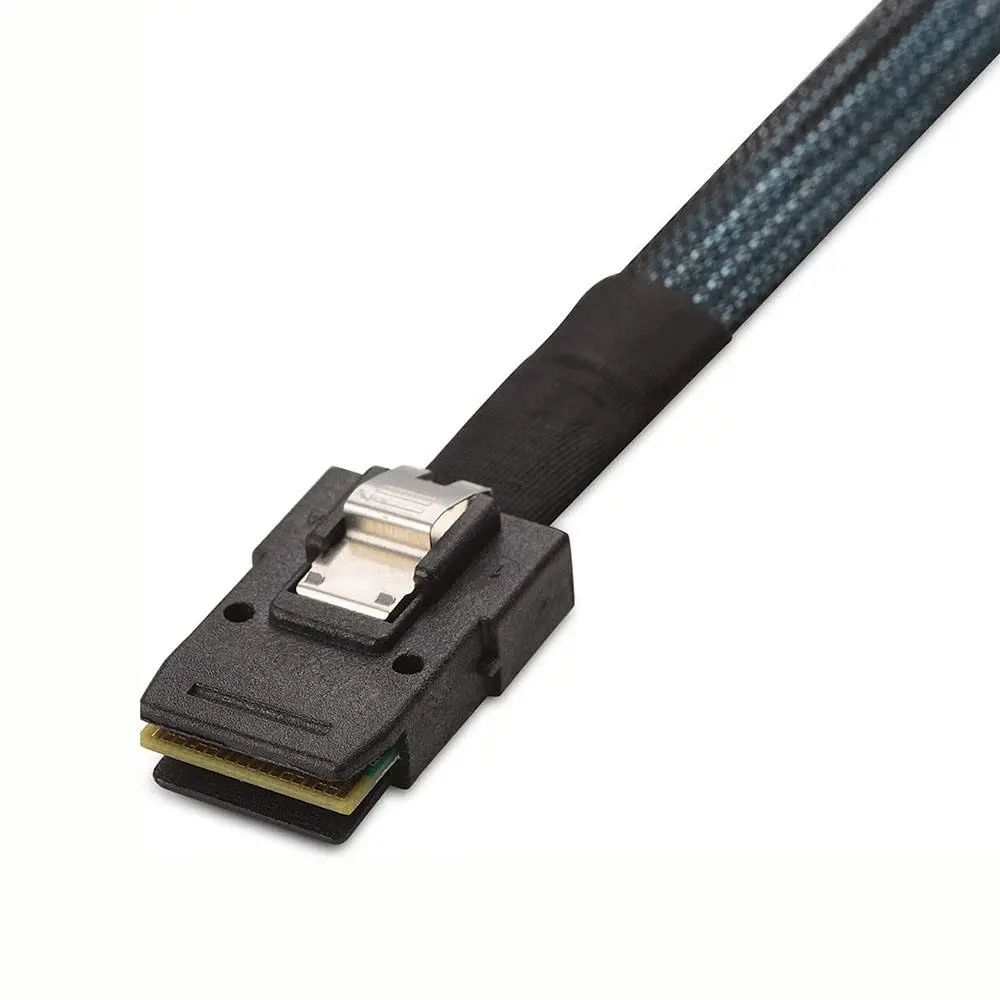

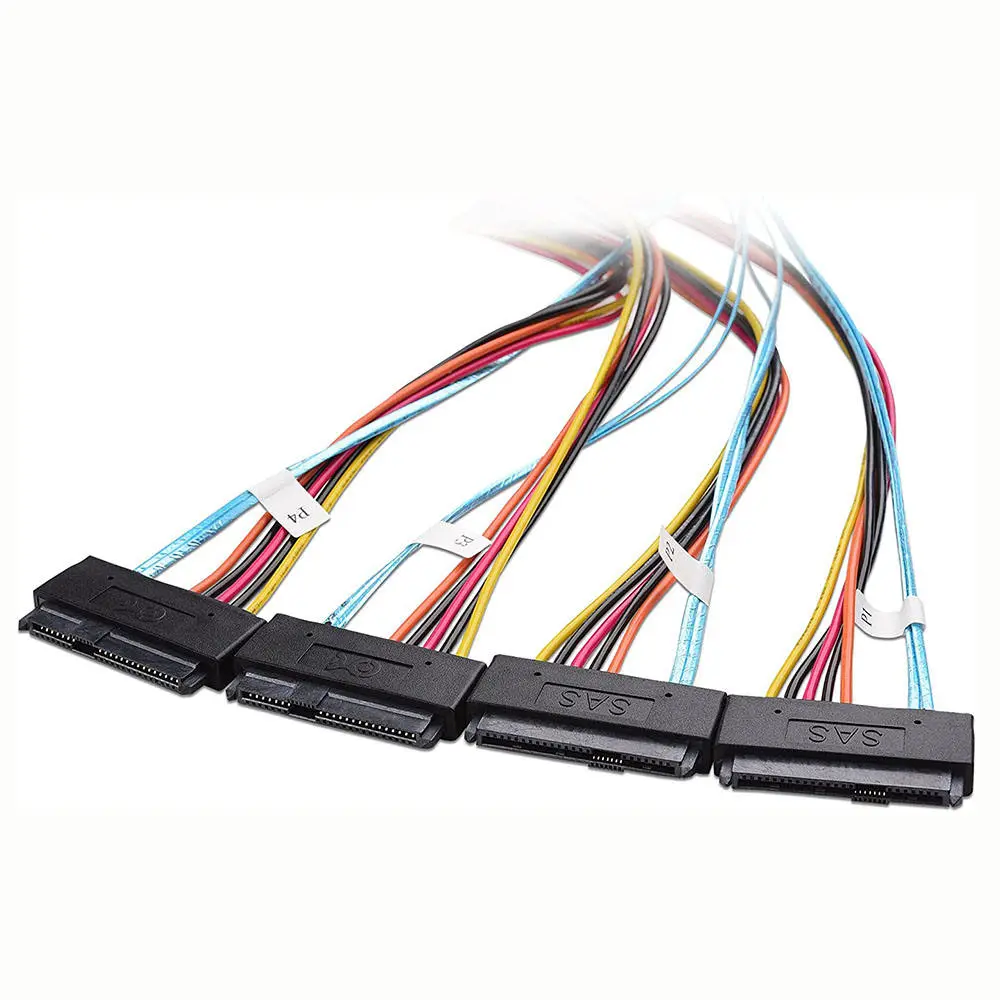

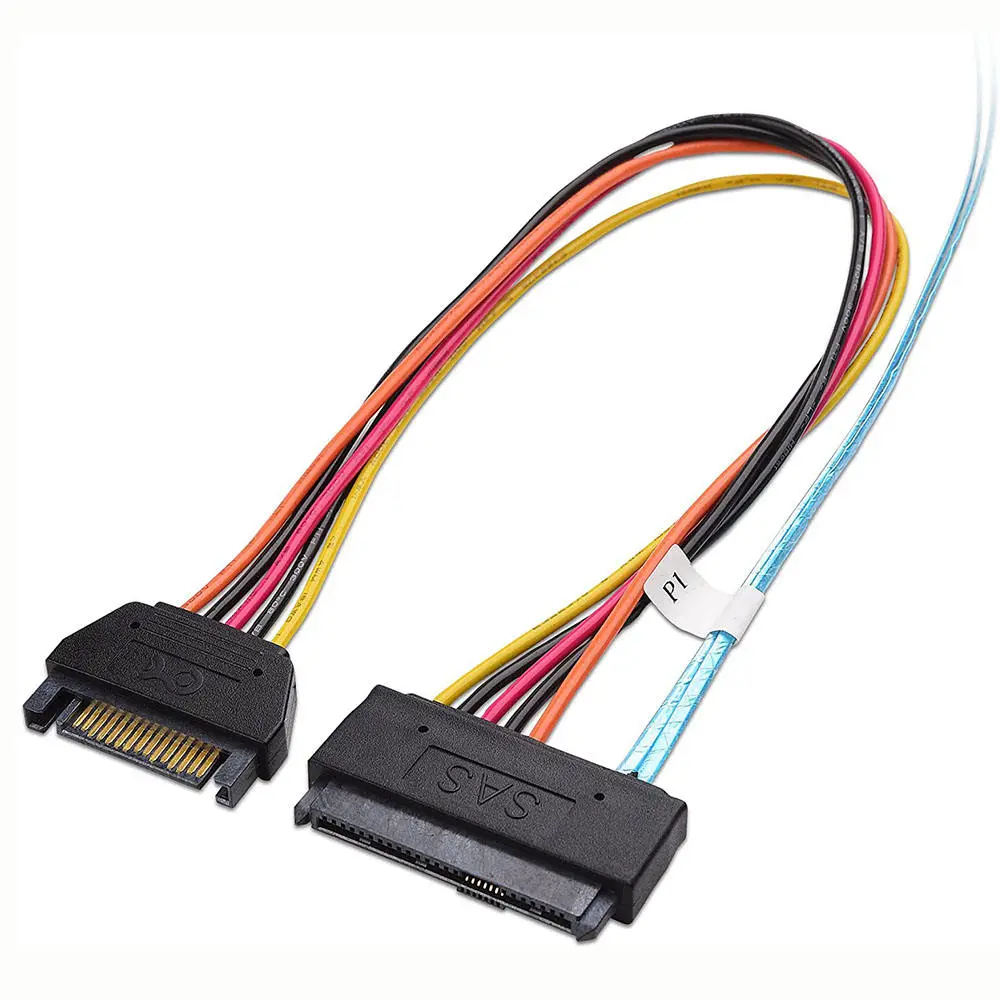

Cable Specification Host/Controller Connection: 1x 36 pin Mini-SAS SFF-8087 – male plug with latch Target/SAS Drive Connections: 4x 29 pin SAS SFF-8482 – female receptacle SATA Power Connections: 4x 15 pin SATA – male plug Cable Assembly Length: 3.3 Feet Mini-SAS cables – 30 AWG SATA power cables – 18 AWG
