Computer Fan Speed Controller Chassis Fan Hub Pwm10way

Computer Fan Speed Controller Chassis Fan Hub Pwm10way Fan Hub Computer Temperature Controller

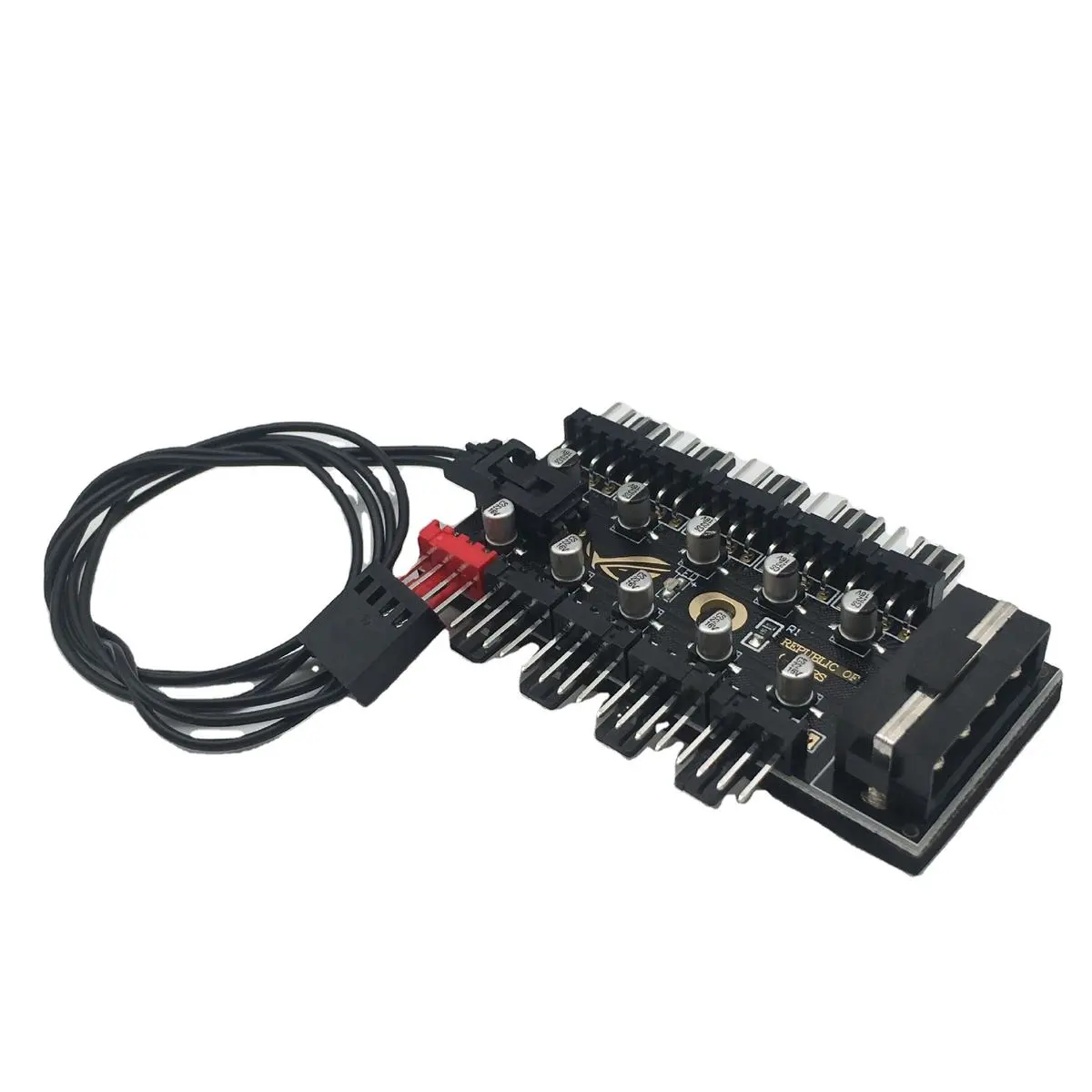

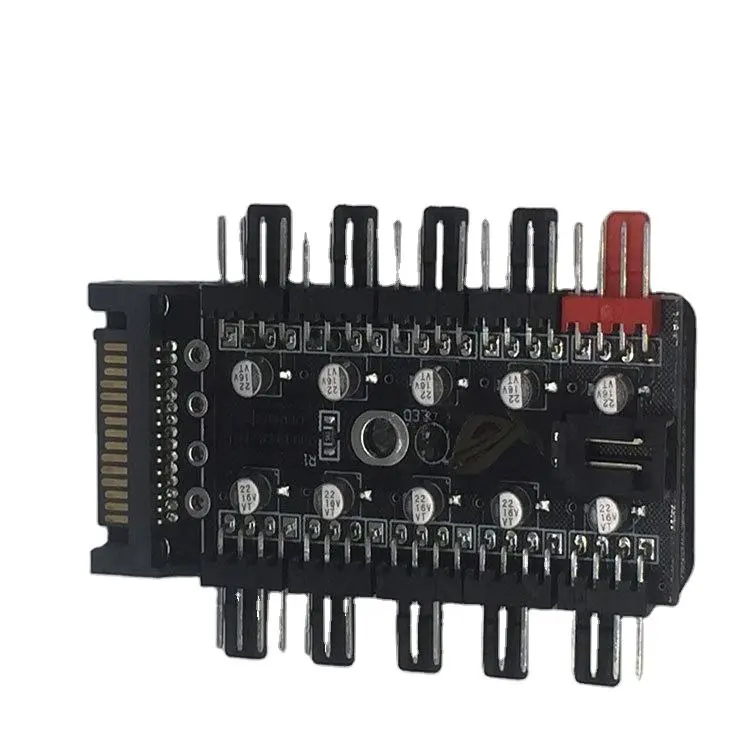

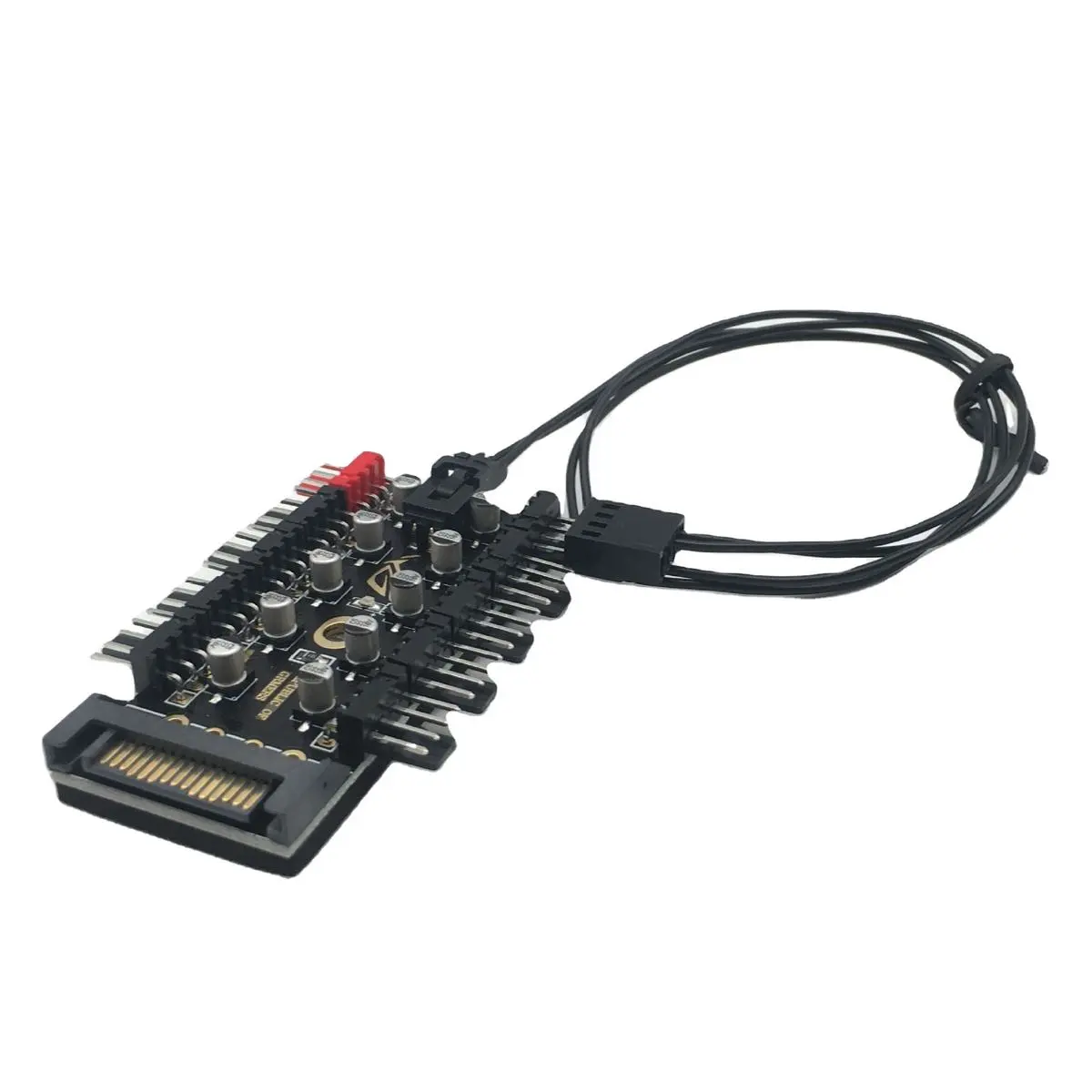

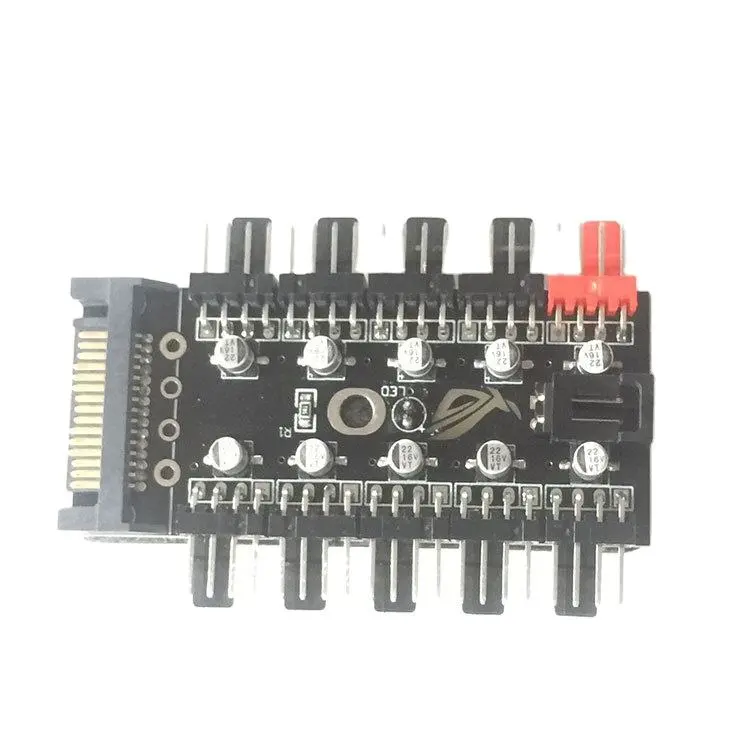

1: Extend the 4-pin connector of 10-bit fan, solve the lack of motherboard connector, and concentrate on processing fan wires. 2: The pwm interface is connected to the motherboard cpu_fan interface, and the red is the dedicated interface for the cpu fan (with speed measurement function). The black interface is a pwm conventional fan interface (no speed measurement signal, but does not affect the pwm function). Note: To avoid speed measurement confusion, computer crashes, a multi-channel interface expanded from an interface, only display the speed measurement of one of the fans! ! !

3: The power supply can be directly powered by the power supply, which can reduce the load pressure of the motherboard. The temperature control line PWM is connected separately from the motherboard, and the power supply and temperature control are both correct.

4: Use range: suitable for 12V motherboard 3pin/4pin fan. [3pin fan can also be used, but it runs at full speed when plugged in, because 3pin fan has no PWM speed control function]

5: There is 3M adhesive on the back of the hub PCB board, which is convenient for pasting on a flat place. There is also a fixed screw hole position (the product comes with a pwm temperature control cable with a length of 40CM)

6: Maximum current support, single channel shall not exceed 1A, and the total of 10 channels shall not exceed 10A. [Too much current, the hub can’t bear it]

7: This product is a hub, the function is to expand a single motherboard four-pin port into multiple ports, if your fan is a 3-pin fan, you can also plug it in, but it cannot achieve PWM control speed! Please pay attention! Because this is a hub, not a governor! ! ! Not even an RGB fan controller! ! !
