3.5mm Speaker Wire Adapter,3.5mm (1/8″) 4 Pole Stereo TRRS

Name: 3.5mm Speaker Wire Adapter,3.5mm (1/8") 4 Pole Stereo TRRS
Price: 2.00 USD
Availability: InStock

$2.00

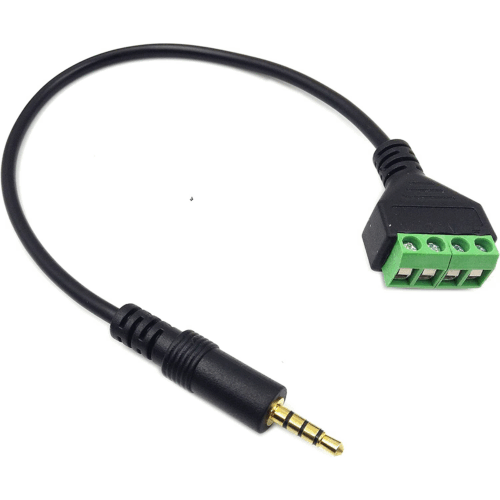

3.5mm Speaker Wire Adapter, 3.5mm (1/8″) 4 Pole Stereo TRRS Male Jack to AV 4 Screw Terminal Block Balun Connectors Cable

Categories: Audio Video Cables, RCA Cable | XLR Cable

Description
Additional information

3.5mm Speaker Wire Adapter, 3.5mm (1/8″) 4 Pole Stereo TRRS Male Jack to AV 4 Screw Terminal Block Balun Connectors Cable

1. Speaker Wire to 3.5mm Cable with Connectors 1: 3.5mm 1/8″ TRRS (4-Pole) Male jack, Connectors 2: AV 4-Pin Screw Terminal Block jack, please note: Did not when when attached to wifi projector.
2. 3.5mm screw terminal cable,connecting single wires with open cable heads to your 3.5mm jack.
3. 3.5mm 1/8” trrs cable, it has four total conductors – three signal and a ground as opposed to a more common stereo jack’s two.
4. No soldering required! Use stranded or solid core wire and a small screw driver to create custom wiring jigs.

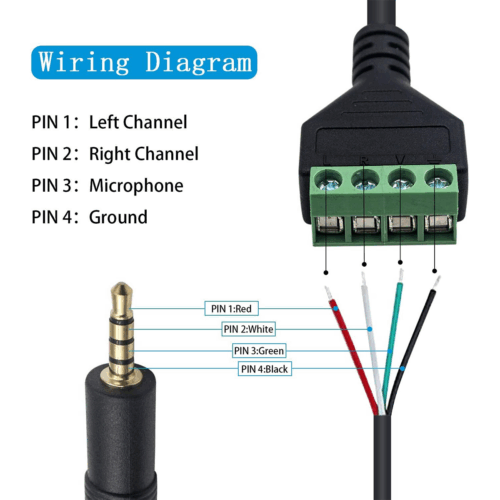

Wiring diagram:
PIN 1 – red wire; PIN 2 – white wire; PIN 3 – green wire; PIN 4 – black wire.

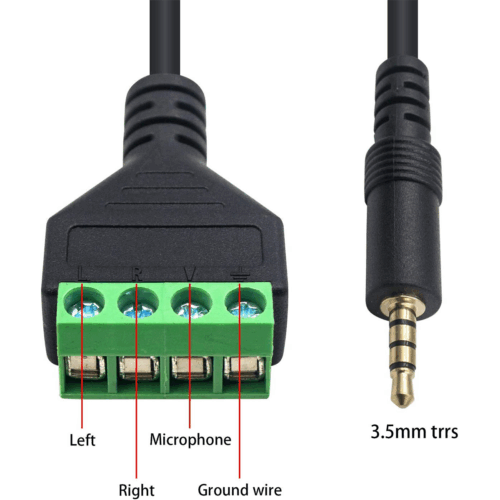

OMTP standard: PIN1 – Left channel; PIN 2 – Right channel; PIN 3 – Microphone; PIN 4 – Ground.

CTIA standard: PIN1 – Left channel; PIN 2 – Right channel; PIN 3 – Ground; PIN 4 – Microphone.
5. 3.5mm trrs plug cable is more convenient to use more quickly without welding, and you can use the 22-18 gauge to connect.

Specification:

3.5mm Screw Terminal Block Cable
3.5mm (1/8″) 4 Pole Stereo TRRS Male Jack to 4 Screw Terminal Block Balun Connectors Cable
Length: 30cm/12inch
Material: Plastic & Metal
Features: 3.5mm (1/8inch) Stereo TRRS Audio Male to 4 Pin/Way Female Bolt Screw Headphone Balum Converter Adapter Cable

Comaptible with:
Great for devices with 3.5mm (1/8 Inch) Stereo Audio Port microphone, earphone, Speaker, PC and more (1/8 Inch) devices

3.5mm trrs jack cable speaker wire to 3.5mm adapter cable

Wire range: AWG28～16, Pin: 4way/pin, Compact design and reliable connection for the male 3.5mm Stereo TRRS Audio to Screw Terminal adapter cable
No soldering required, easy to use, Requires only a screwdriver and a wire stripper to terminate 3.5mm (1/8 Inch)Stereo TRRS Audio cables, Saves time and hassle for installers.

Weight	0.03 lbs
